Animation Configuration

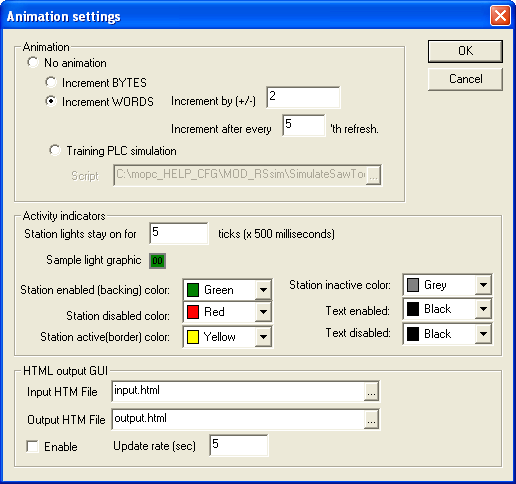

The Animation section contains switches to select a type of simulator automation:

  No animation – automation is disabled

  Increment BYTES – change values of all registers by 257*k (*);

  Increment WORDS – change values of all registers by k (*),

(*) k is set by the parameter Increment by (+/-). A change period is set by the parameter Increment after every…;

  Training PLC simulation – script automation (see Script Automation ).

In the section Activity indicators, parameters of station indicator display are set.
