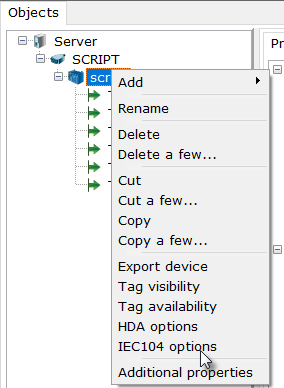

After IEC-104 server mode is activated in the server root, it becomes possible to change IEC-104 server settings in groups. For this purpose the IEC104 Settings item becomes available in the context menu of all devices and groups:

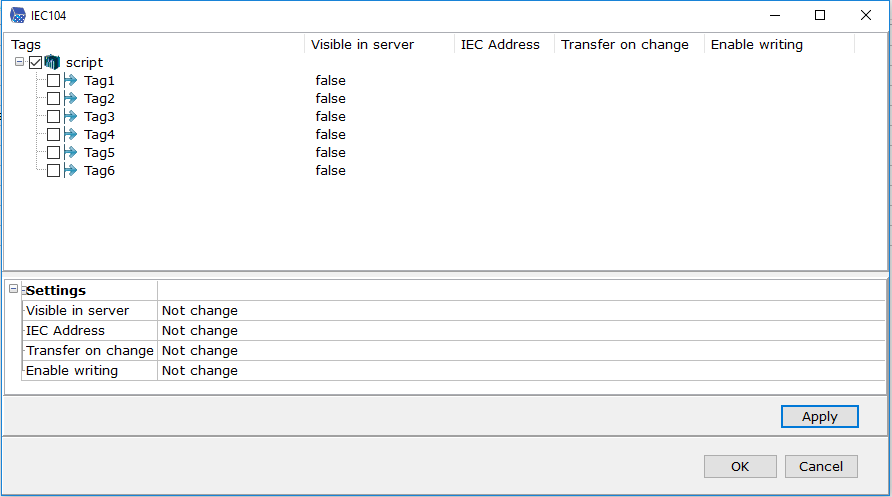

Selecting this item opens the window of group changes of tag parameters.
Using this window you can change the IEC104 server settings for the selected tags in the tree - Enable/Disable their visibility via IEC-104 protocol, change the address, transmission method and recording resolution.
•Display in the server:
oNot change - leaves the mode setting unchanged.
otrue - enables tag visibility in the IEC104 server.
ofalse - turns off the visibility of the tag in the IEC104 server.
•IEC address - allows you to change the IEC address of the tag:
oNot change - leaves the IEC address unchanged.
oBy offset, the Base address parameter sets the initial address of the device, the Offset parameter sets the increment (positive number) or decrement (negative number).
oBy sum, the only one in this case, the Summand parameter specifies a value (can be negative) that is added to the addresses of the allocated devices.
•Transfer in change:
oНе изменять - оставляет способ передачи неизменным.
otrue - включает передачу при изменении тега.
ofalse - включает передачу только по запросу клиента.
•Разрешение записи значения:
oNot change - leaves the resolution of the recording unchanged.
otrue - allows values to be written to the tag.
ofalse - prohibits values from being written to the tag.
The Export and Import buttons allow you to export and import flagged tags for further editing by third-party software, such as Excel.

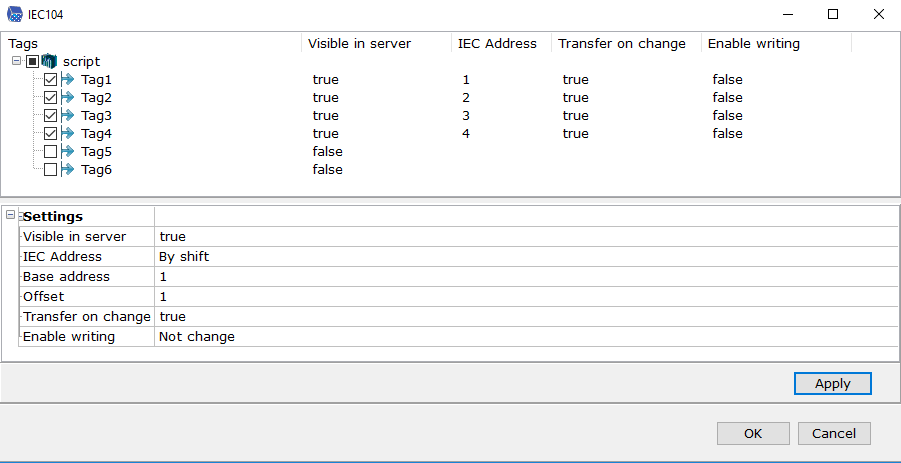

Example of setting - enabling Tag1-Tag4 tag visibility by specifying addresses - 1-4, with pass through change:

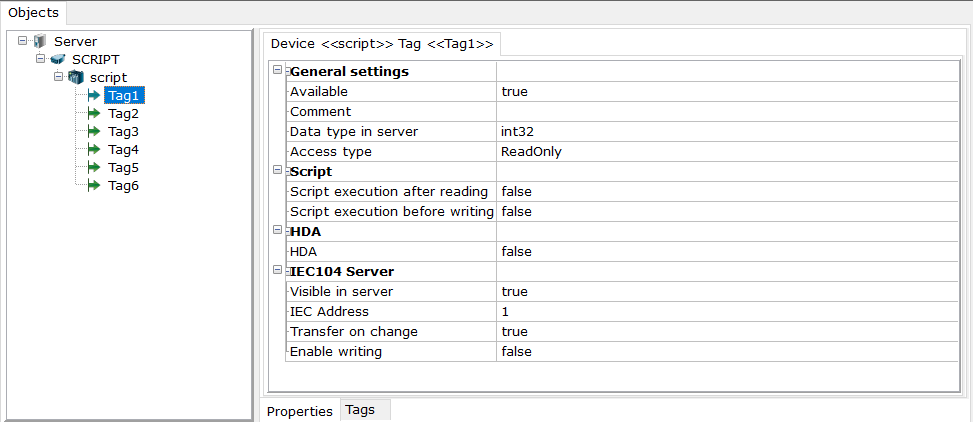

Result:
