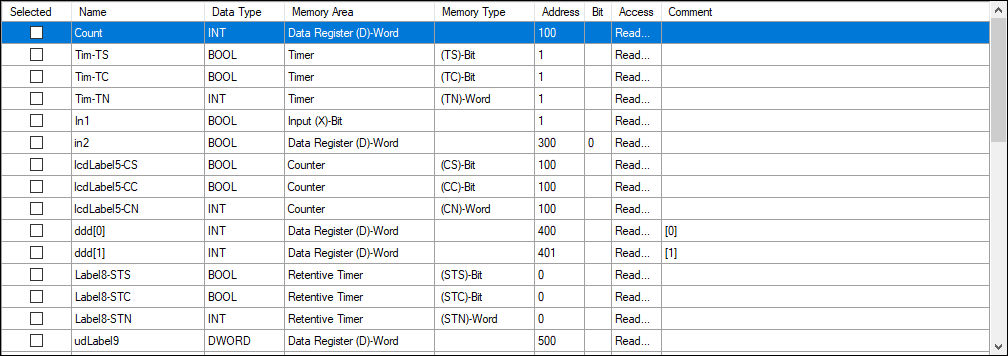

Table rows contain all variables of a file imported. Table columns contain attributes of each tag imported. The table supports sorting (to sort to click a column caption). Variables unsupported are highlighted in red; such variables cannot be imported into the configuration.
Variables of regions Timer and Counter create two lines with endings Contact (S), Coil (C) and Current Value (N).
•Selected - the column of check boxes. Checking a box means that the respective variable will be imported into the OPC server.
•Name - a name of a variable
•Data type - a data type of a variable in CX-Programmer. When importing, the Data type in server setting is adjusted automatically according to a data type of a variable imported.
•Memory area - a memory area of a variable
•Memory type - some memory segments have several memory types (for example, times and counters; in addition, bits can be extracted from some areas). The column defines that memory type.
•Address - an address of a variable in the memory area
•Bit - a number of a bit extracted from a variable
•Access type - an access type of a variable. To change an access type, just click such a cell.
•Comment - a comment to a variable
