Import from SND

<< Click to Display Table of Contents >>

Navigation:  Multi-Protocol MasterOPC Server > Plugin SCRIPT > Import tags >

Import from SND

SND is a file generated by the OPC server when exporting a node. This format is used if it is necessary to make an identical tag structure in the Script driver. This is used when creating various non-standard tunnels, such as tunnels through the MQTT protocol.

To generate an SND file, call the context menu of the node you want and select Export Node.

mpsplugin_script_import_tegov_import_iz_snd

In the window that appears, select the path for saving the file.

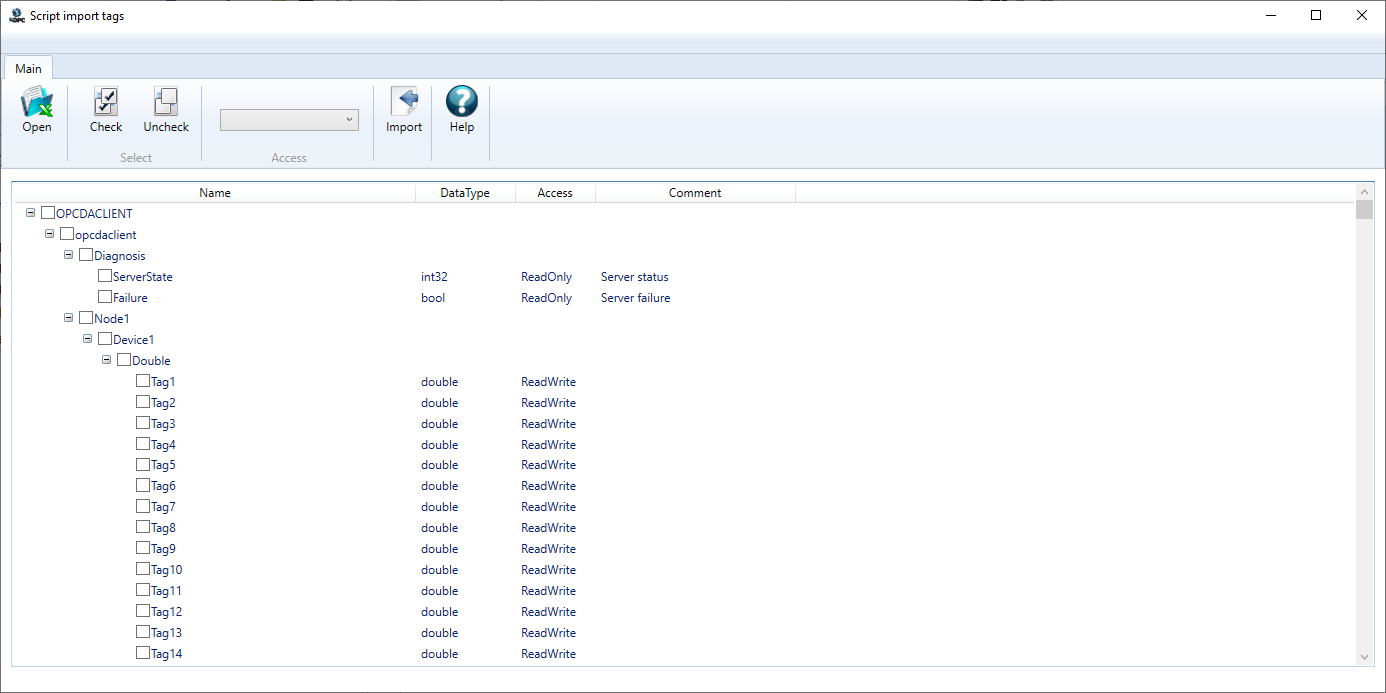

In the import utility, click on the Open button and open the previously generated file.

mpsplugin_script_import_tegov_import_iz_snd1

All tags of the given node will be loaded into the tree.

You can use the Check and Uncheck buttons to turn the flag on/off for the selected tags.

Use the Access drop-down list to set the desired access type for the selected tags.

After clicking the Import button, the tags will be added to the device.
