Tag Multiplication

Tag Multiplication

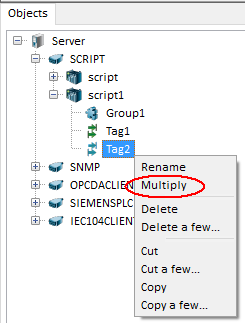

The multiplication command (Multiply) is available in context menu of a tag:

multi_img66

Upon this command, the dialog to set number of tag copies opens:

multi_img67

To cancel the operation to click Cancel. To multiply a tag to click OK:

multi_img68

Names of the tags-copies are formed from a name of the replicated tag with adding an incremented index: <name of replicated object>N (if the last characters of the initial tag name are some number A, then N=A+1, A+2, etc., otherwise, N=1, 2 etc.) When replicating, all settings of the initial tag are copied (including scripts).
