Group Operations with Nodes

This command is available in a context menu of a server. The command is intended for group change of nodes parameters.

•Operation = Copy

•Operation = Cut

•Operation = Delete

•Operation = Change node type

•Operation = Change IP address

•Operation = Change IP port

•Operation = Change COM port

•Operation = Change IP options

•Operation = Change COM options



Operation = Copy

gruppovwe_operacii_uzlov

Upon the OK command, highlighted nodes are copied into the clipboard.

Operation = Cut

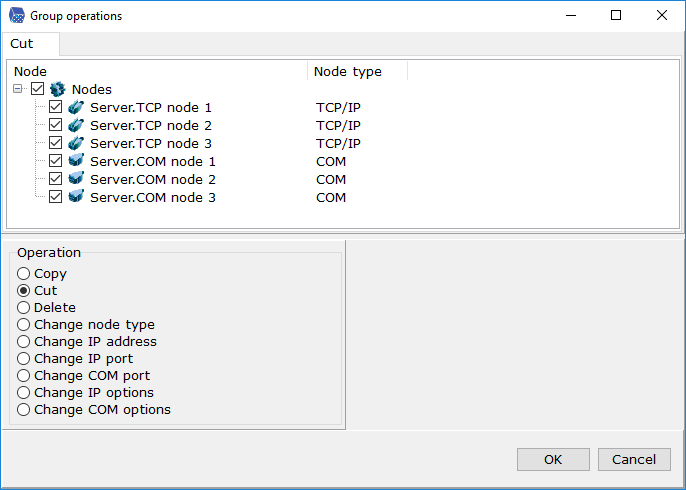

gruppovwe_operacii_uzlov1

Upon the OK command, highlighted nodes are cut into the clipboard.

Operation = Delete

gruppovwe_operacii_uzlov2

Upon the OK command, highlighted nodes are deleted.

Operation = Change node type

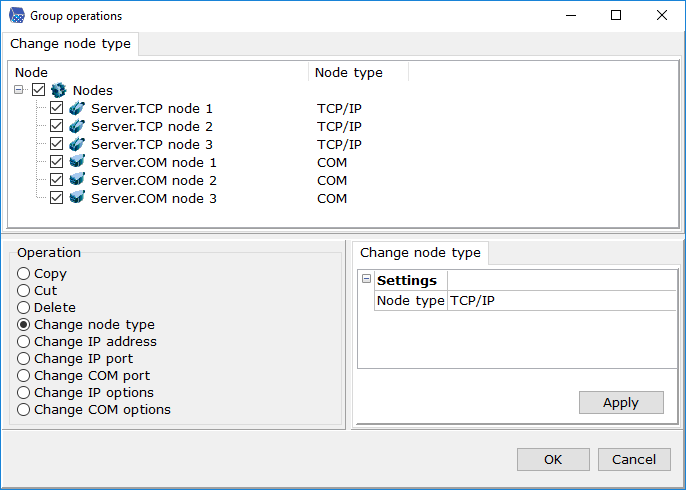

gruppovwe_operacii_uzlov3

Upon the Apply command, highlighted nodes change their types to a type specified.

Operation = Change IP address

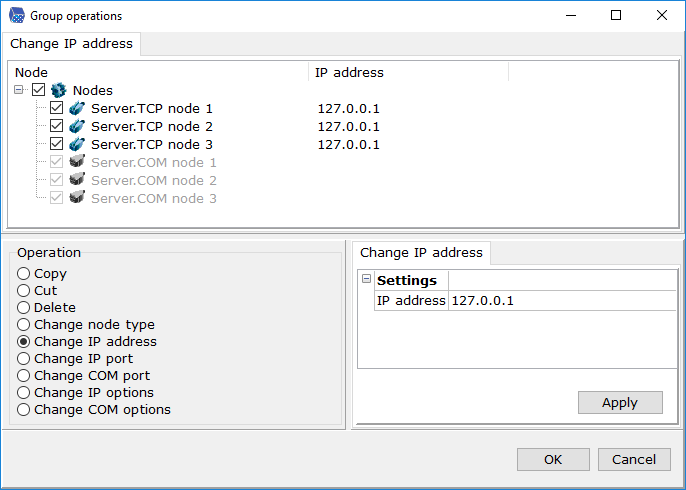

gruppovwe_operacii_uzlov4

Upon the Apply command, highlighted nodes change their IP addresses to an IP address specified. All nodes of the COM or Program type are blocked in the tree.

Operation = Change IP port

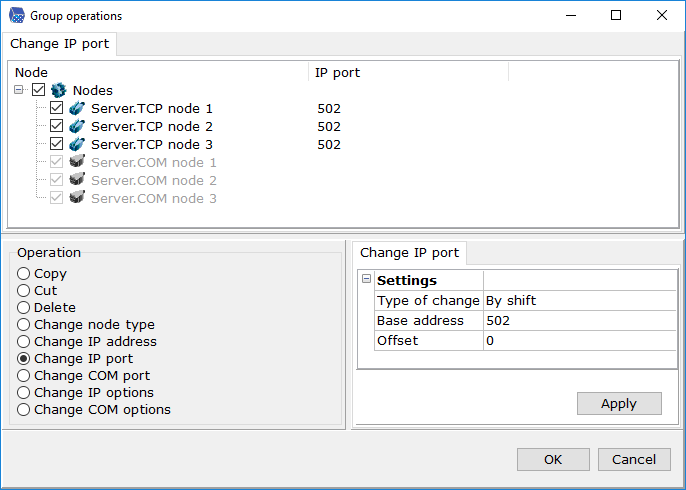

gruppovwe_operacii_uzlov5

This dialog allows you to set incremented/decremented port numbers for highlighted nodes.

If Type of change=By shift,  the Base address parameter defines an initial port number, and the Offset parameter defines an increment (a positive value) or a decrement (a negative value).

If Type of change=By sum, the only parameter Summand is available, and this parameter defines a value (can be negative) that is added to port numbers of highlighted nodes.

Upon the Apply command, highlighted nodes change their port numbers to respective ones. All nodes of the COM or Program type are blocked in the tree.

Operation = Change COM port

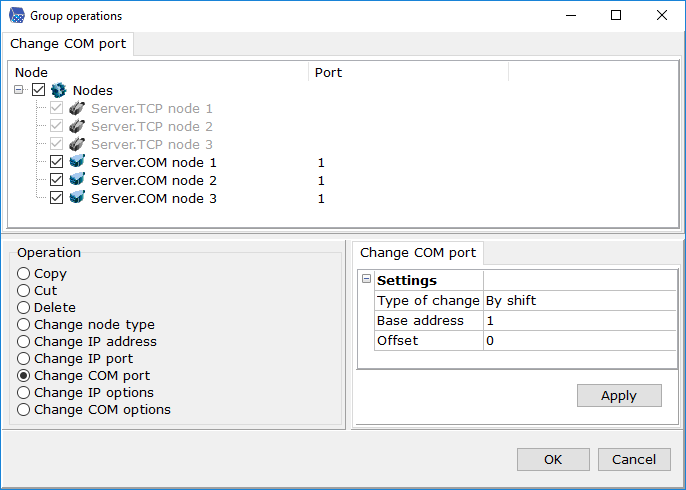

gruppovwe_operacii_uzlov6

This dialog allows you to set incremented/decremented COM-port numbers for highlighted nodes.

If Type of change=By shift,  the Base address parameter defines an initial port number, and the Offset parameter defines an increment (a positive value) or a decrement (a negative value).

If Type of change=By sum, the only parameter Summand is available, and this parameter defines a value (can be negative) that is added to port numbers of highlighted nodes.

Upon the Apply command, highlighted nodes change their COM port numbers to respective ones. All nodes of the TCP/IP or Program type are blocked in the tree.

Operation = Change IP options

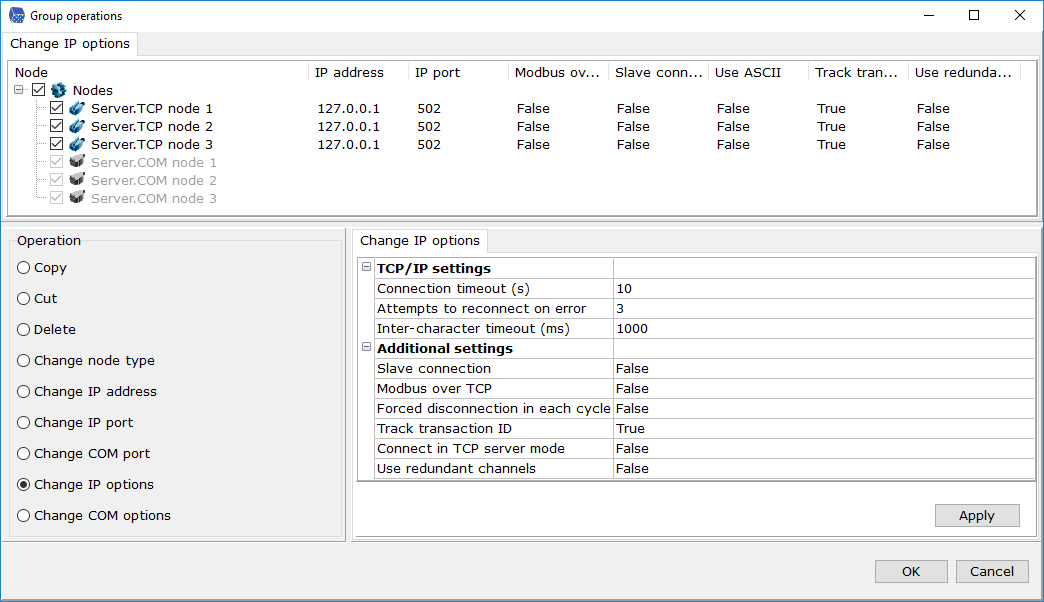

gruppovwe_operacii_uzlov7

Upon the Apply command, highlighted nodes change TCP parameters to specified ones. All nodes of the COM or Program type are blocked in the tree.

Operation = Change COM options

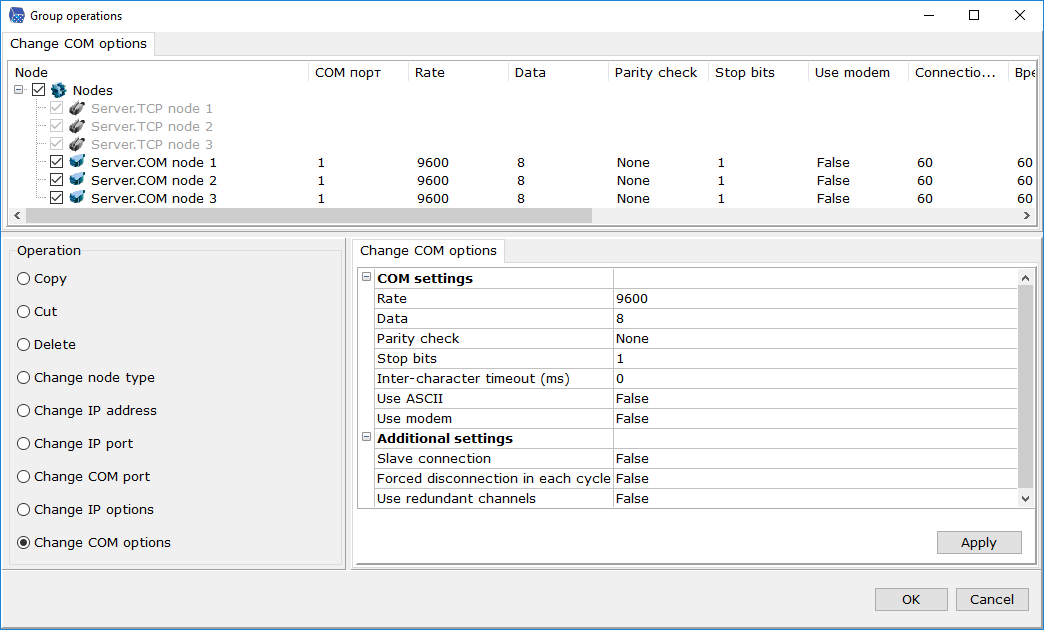

gruppovwe_operacii_uzlov8

Upon the Apply command, highlighted nodes change COM parameters to specified ones. All nodes of the TCP/IP or Program type are blocked in the tree.
