Operation Modes

Operation Modes

MasterOPC Universal Modbus Server can be in one of the following modes:

mbul   Design time

mbul   Run-time

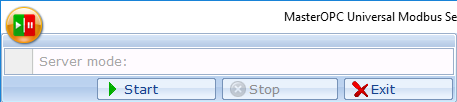

To switch a mode to click the button modbus_img7 (in the left upper part of the server window), and click the respective command in the menu displayed:

modbus_img8

mbul   modbus_img9 Start – switch to the run-time mode

mbul   modbus_img10 Stop – switch to the design-time mode

mbul   modbus_img11 Exit – exit the program

In addition, the following command launches the server in the run-time mode (the server executes a start configuration; see also Server Auto-Launch at Client Connection ):

modbusopcserver.exe NO

In addition possible to run the OPC server as a service.For this, the server includes a bat file - "Register Modbus Universal MasterOPC as service". Bat file must be started under the administrator - for creates and adds a service InSAT.ModbusOPC.Server.Service. By default, the service starts in "Manual" и "Stop". The startup type and service status settings are then made through the Windows services management window.

To delete the service, run the bat file "Register Modbus Universal MasterOPC" - the program will be registered as an application, followed by the removal of the service.

Note. The start mode with the NO parameter and in the service mode is not supported in the Trial version
