Modbus Universal MasterOPC Server > MasterOPC Universal Modbus Server > The Design-Time Mode > Operations in the Object Tree

Tag Import

The Import tags command is available in the device context menu.

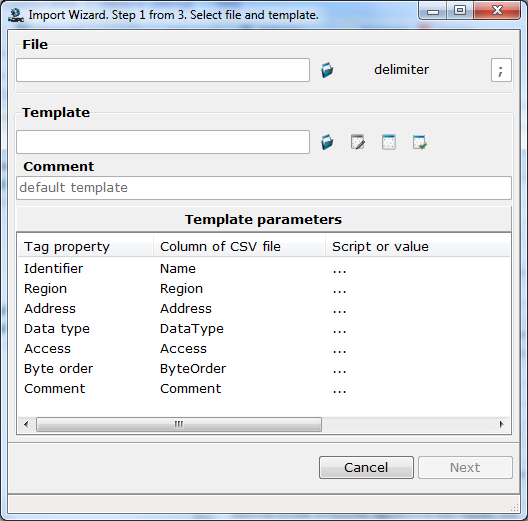

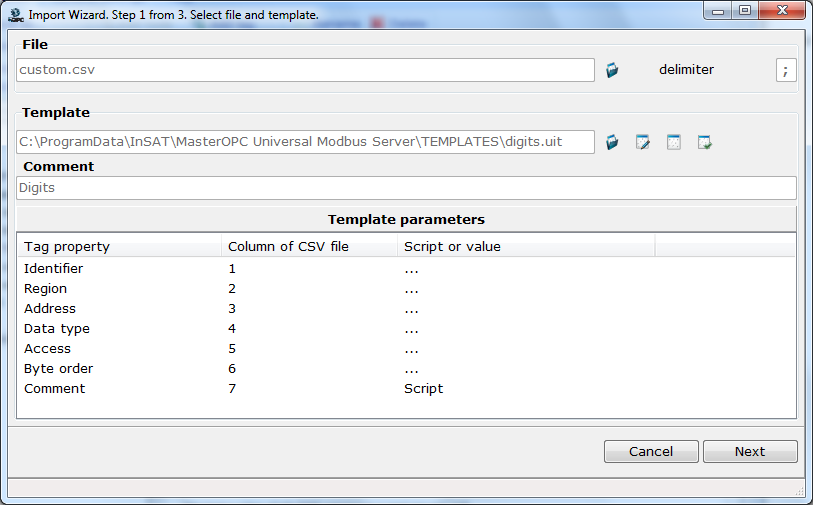

Upon the command, the first dialog of the import wizard is displayed:

modbus_img56

The dialog tools are:

File – a CSV file (click to open the standard file selection dialog)

Delimiter – a delimiter of columns in CSV file

Template – a map template (such a template defines correspondence between tag properties and CSV-file columns):

Load a template – load a user template

Edit the current template – open the current user template in the respective editor (see The Map Template Editor ; the built-in template is unavailable for user)

Create a new template – open the map template editor

Load the default template – load the built-in map template

Comment – this textbox displays a comment specified for a user template in the editor ("default template" is displayed for the built-in template)

Template parameters – this section displays parameters of a user template

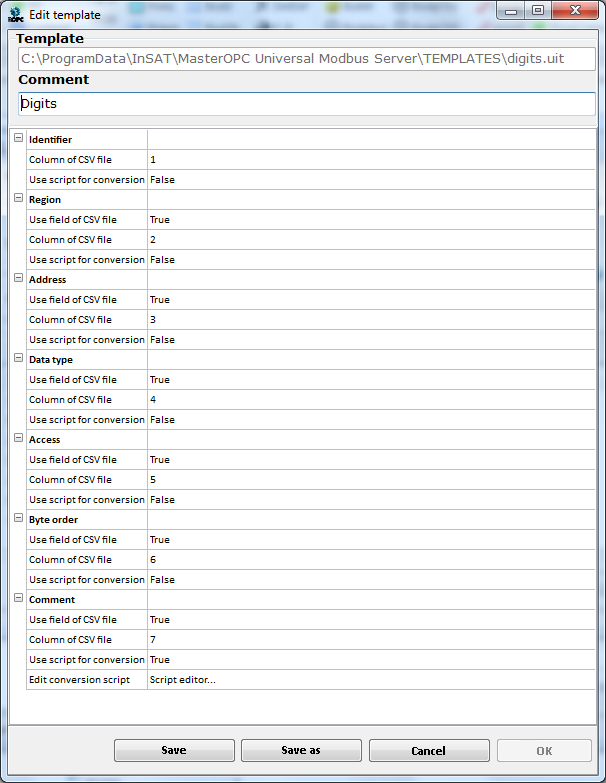

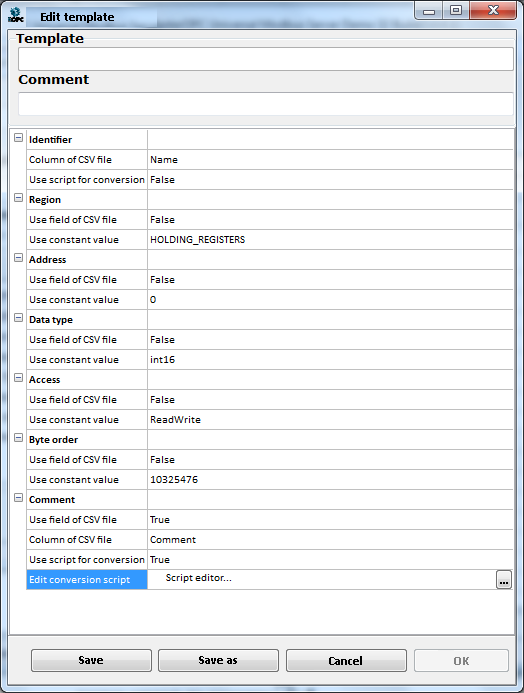

The Map Template Editor

modbus_img62

The editor tools are:

Template – this textbox displays a pathname of the current user template (if the editor is opened upon the command ):

Comment – template comment

A group of tag properties (Identifier, Region, etc.):

Column of CSV file – correspondence between a tag property and a column of CSV file. In all groups except for Identifier, this parameter is available only if Use field of CSV file=TRUE.

Use constant value – a constant value for the respective tag property (that property of each imported tag will be equal to the value specified here). In all groups except for Identifier, this parameter is available only if Use field of CSV file=FALSE.

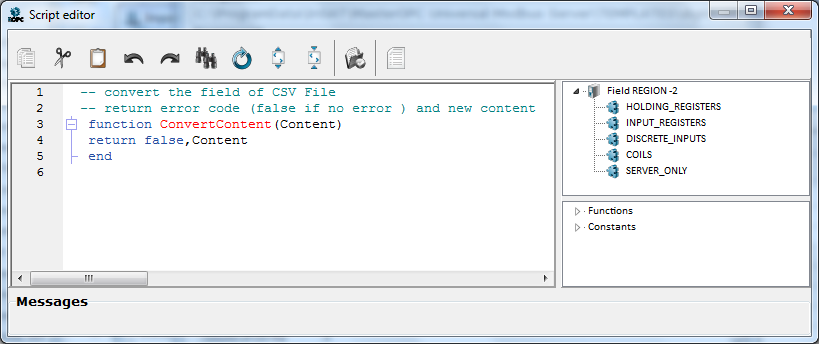

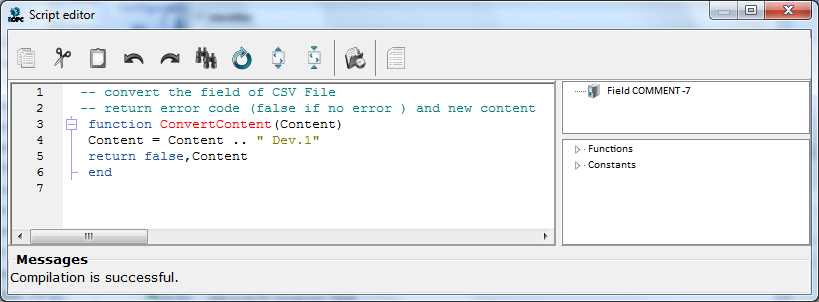

Edit conversion script – a value cell of that parameter contains the button to open the script editor . The editor contains the preset function ConvertContent that may be used to modify a value read out from a CSV file (the Content argument) before that value is written to a tag property:

modbus_img66

In all groups except for Identifier, this parameter is available only if Use script for conversion=TRUE.

Save – save the edited template (the file is overwritten)

Save as – save the edited template to arbitrary *.uit file (the default folder for templates is ..\TEMPLATES\)

Cancel – close the editor (all unsaved changes are discarded)

OK – close the editor (after saving)

Example of Default Import

If such an import is used, column captions in a file must be the same as in an exported file (see Tag Export ):

Name;Region;Address;DataType;Access;ByteOrder;Comment

SubDevice1{s}Group1{g}Tag1;HOLDING_REGISTERS;6;int16;ReadOnly;10325476;Device value

Group1{g}Group11{g}Tag1;HOLDING_REGISTERS;4;int16;ReadOnly;10325476;

Group1{g}Tag1;HOLDING_REGISTERS;3;int16;ReadOnly;10325476;

Tag1;HOLDING_REGISTERS;1;int16;ReadWrite;10325476;

To import, do the follows:

In the first dialog of the import wizard, click the Load the default template button (in the Template section)

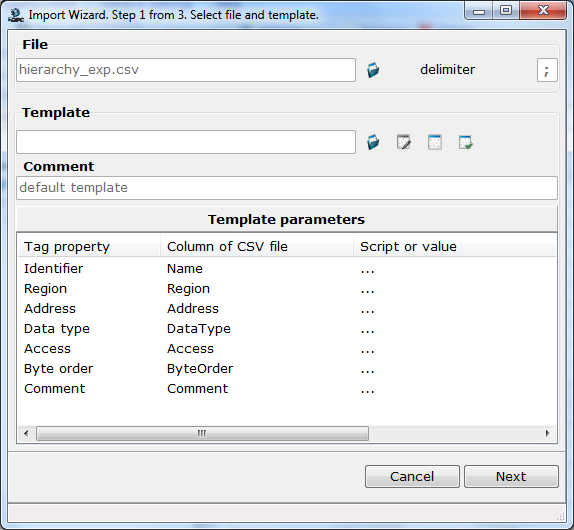

Select a *.csv file, using the tool of the File section

modbus_img69

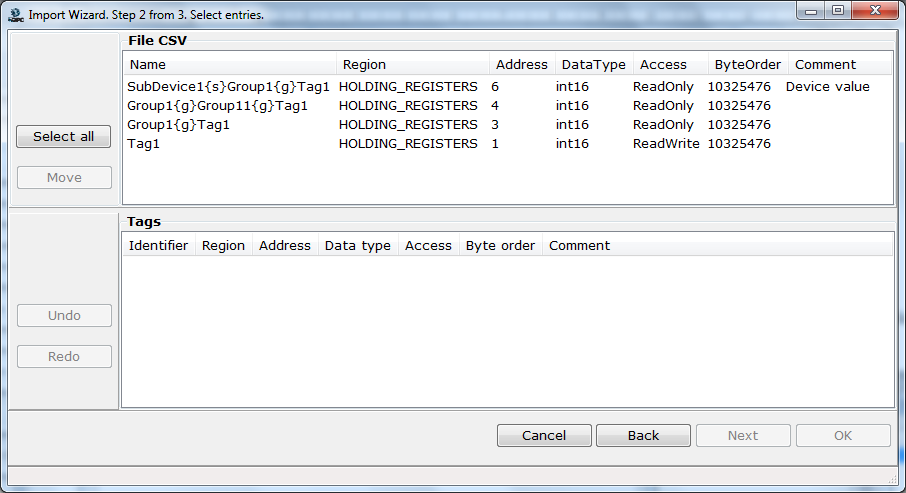

Click Next; the second dialog of the import wizard is displayed (the File CSV section displays a tag table read out from the file):

modbus_img70

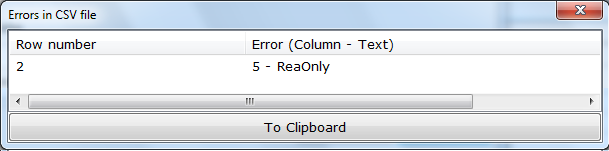

Note 1. If a file contains errors, their description is displayed:

modbus_img71

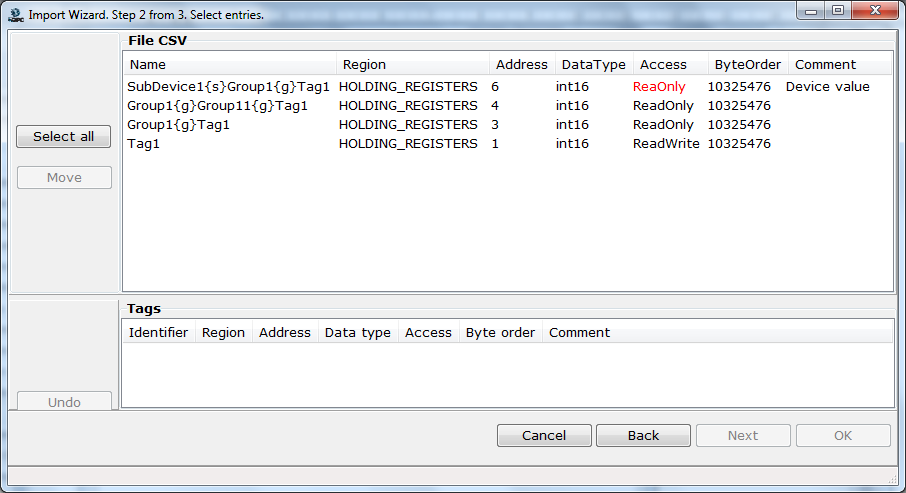

If this dialog is closed, an error is displayed red in the import dialog:

modbus_img72

Note 2. If a file does not contain captions required, the respective message is displayed:

modbus_img73

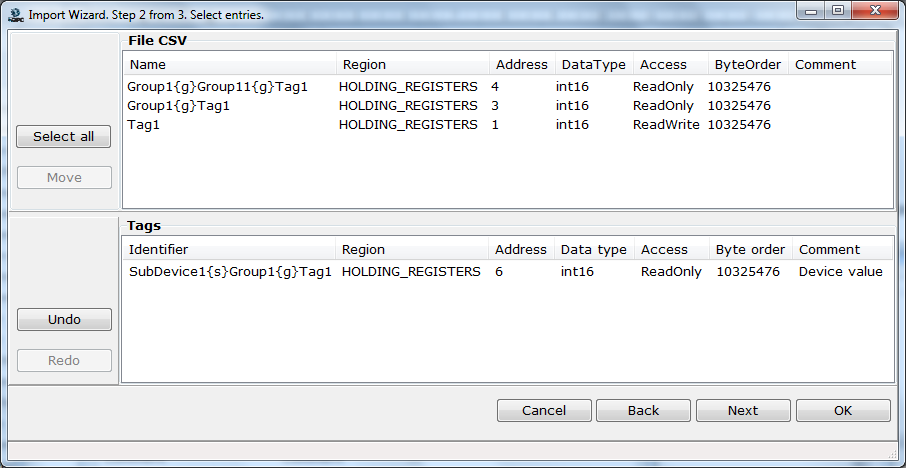

Select tags to be imported (the tools of this dialog are identical to tools of the dialog that is displayed upon the Export tags command – see Tag Export )

modbus_img74

Next, there are two variants.

Variant 1

If an imported structure must be created in the device itself (but not in a subdevice or a group), click the OK button. Upon this command, selected tags along with their hierarchy are imported into the device (subdevices and groups specified in relative tag names are created):

modbus_img75

Variant 2

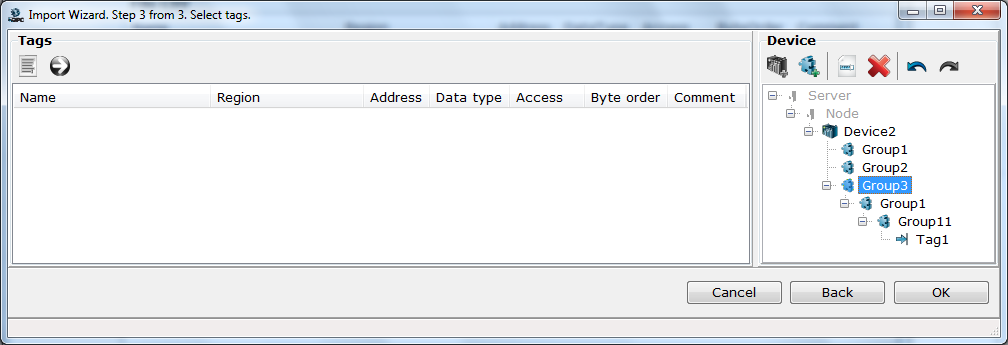

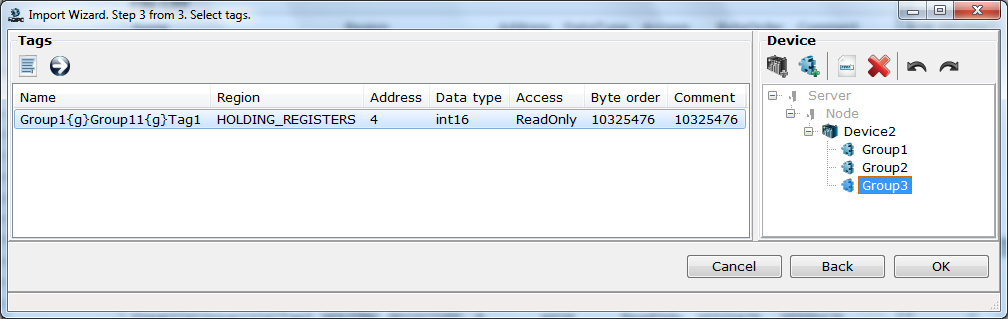

If an imported structure must be created in a subdevice or in a group of the device, click the Next button. Upon this command, the third (final) dialog of the import wizard is displayed:

modbus_img76

Then, do the follows:

Select tags to be imported (multiple-tag selection is supported in the Tags section). To select all of tags, click the button or use the Select all command of the section context menu.

Select a device/subdevice/group. Using tools of the Device section, you can modify a device structure:

– add a subdevice to the highlighted device

– add a group to the highlighted object

– rename the highlighted object

– delete the highlighted object

– undo the last action

– redo the action undone last

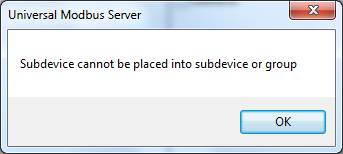

Move selected tags to the required subdevice/group. To move to the highlighted subdevice/group, click . To move to arbitrary subdevice/group, drag tags to that subdevice/group:
