Installing MasterOPC Universal Modbus Server in Windows 10

Installing MasterOPC Universal Modbus Server in Windows 10

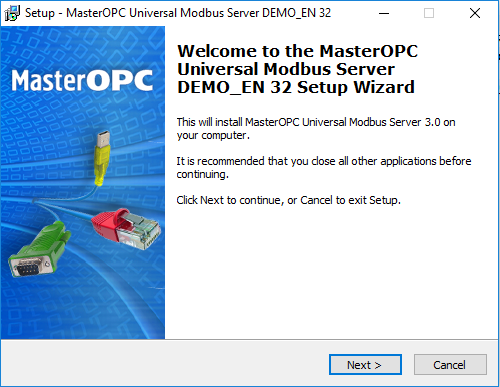

To begin, launch MODBUS_OPC_SERVER_SETUP_EN.exe. The initial dialog of the installation wizard is displayed:

inst_img1

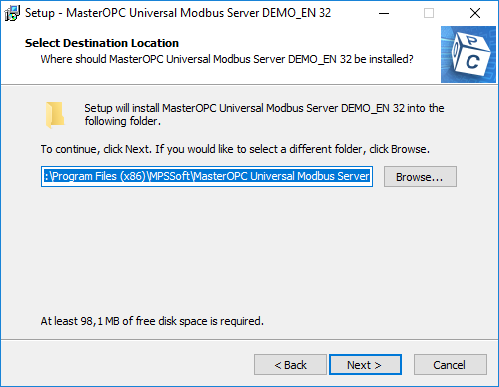

Click Next to open the next dialog:

inst_img2

In this dialog, you can change a default installation folder (you can set a path manually, or click the Browse button and choose a folder in the standard OS dialog displayed).

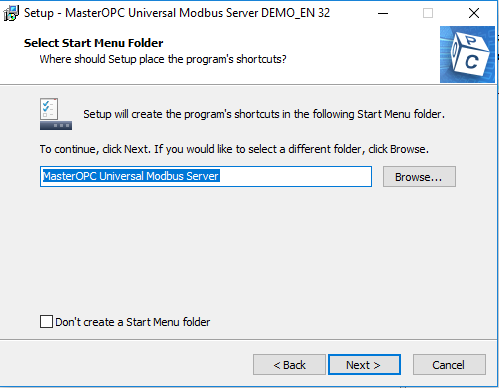

Click Next to open the next dialog:

inst_img3

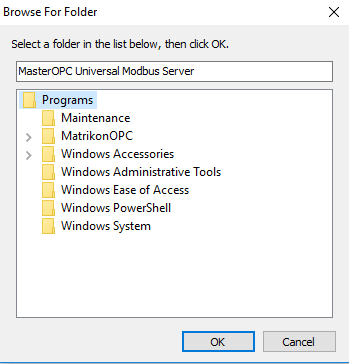

In this dialog, you can change a default folder that must store a group of product shortcuts (click the Browse button and choose a folder in the standard OS dialog displayed). By default, a group of product shortcuts is stored in the root directory of the Start menu.

inst_img4

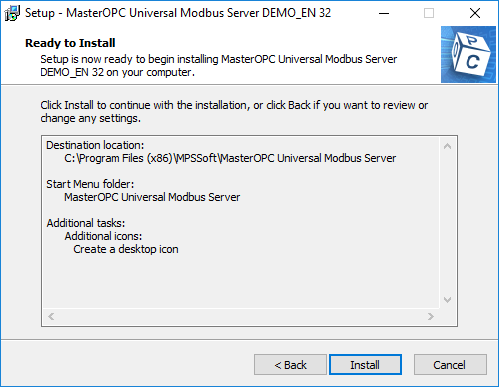

Click OK and then Next. The following dialog is displayed:

inst_img5

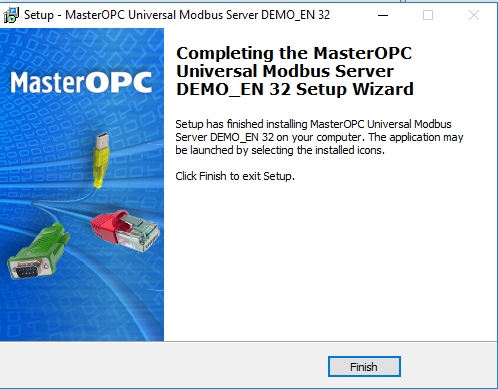

To proceed, click the Install button, and wait till the final dialog is displayed (click the Finish button in that dialog).

inst_img6

Wizard dialogs are provided with the button to cancel installation (Cancel) and the button to open a previous dialog (Back).

After installation, the product must be activated (see Product Activation ).
