Connect MatriconOPC Explorer as an independent OPC client to Modbus OPC Server.
To configure MatriconOPC Explorer, do the follows:

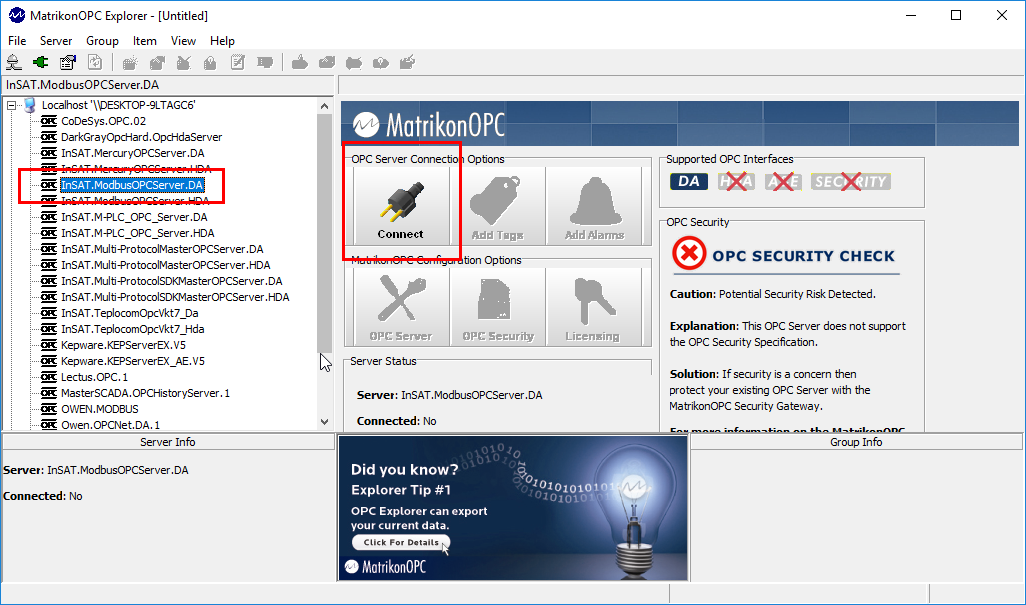

Click the shortcut MatriconOPC Explorer from the Start menu. In the tree of OPC servers of the MatriconOPC Explorer window displayed, select the server InSAT Modbus OPC Server, and click the button Connect:

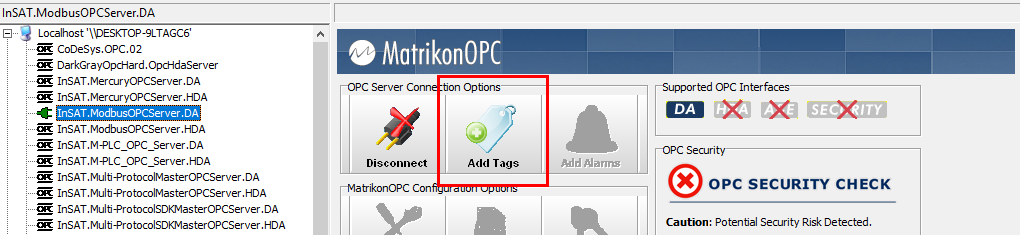

Click the Add Tags button:

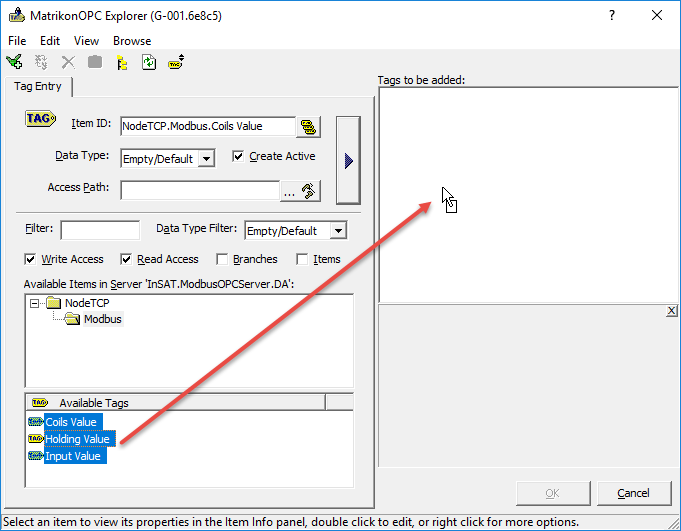

The window opens, which displays a tree of tags of the OPC server. In the window, select all tags of the group NodeTCP.Modbus, and then drag them to the special field.

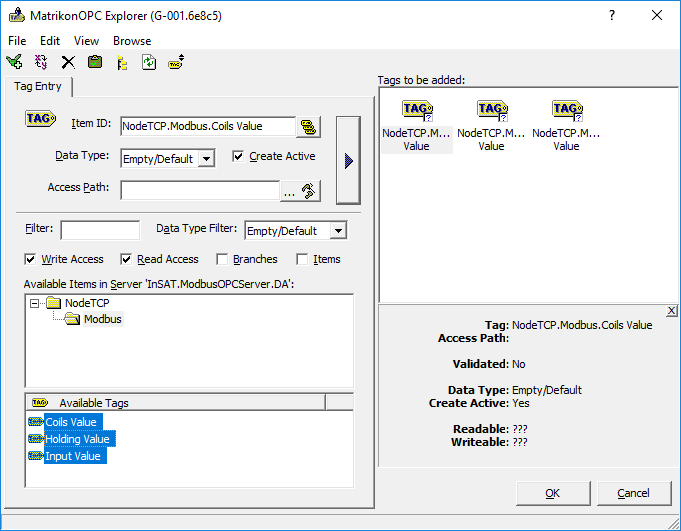

Tags are added to the field. Click OK.

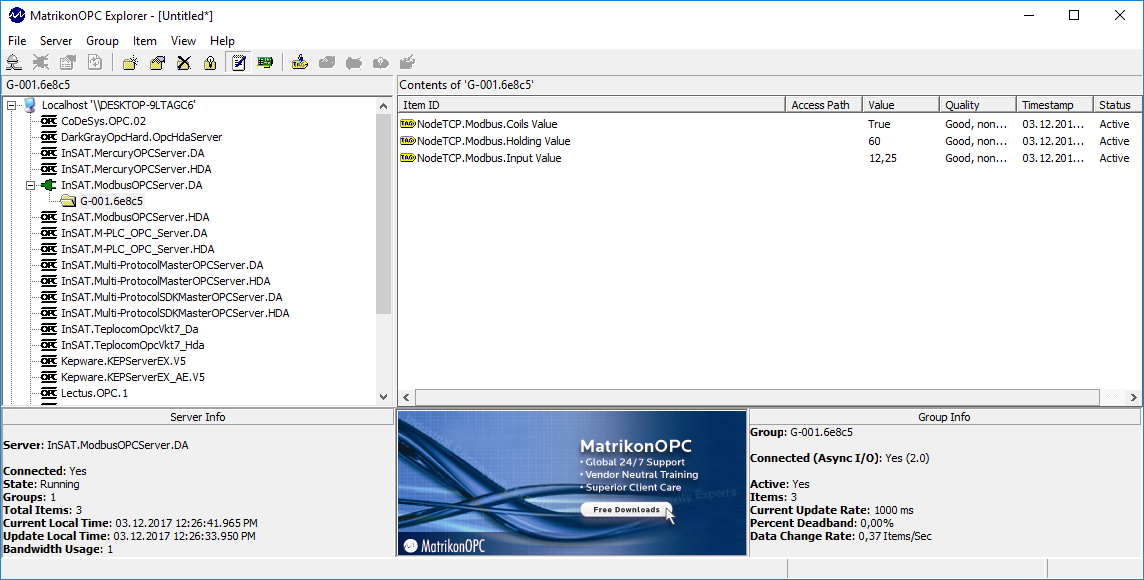

Upon the OK command, a poll of the OPC server is started, and values are displayed in the table.
