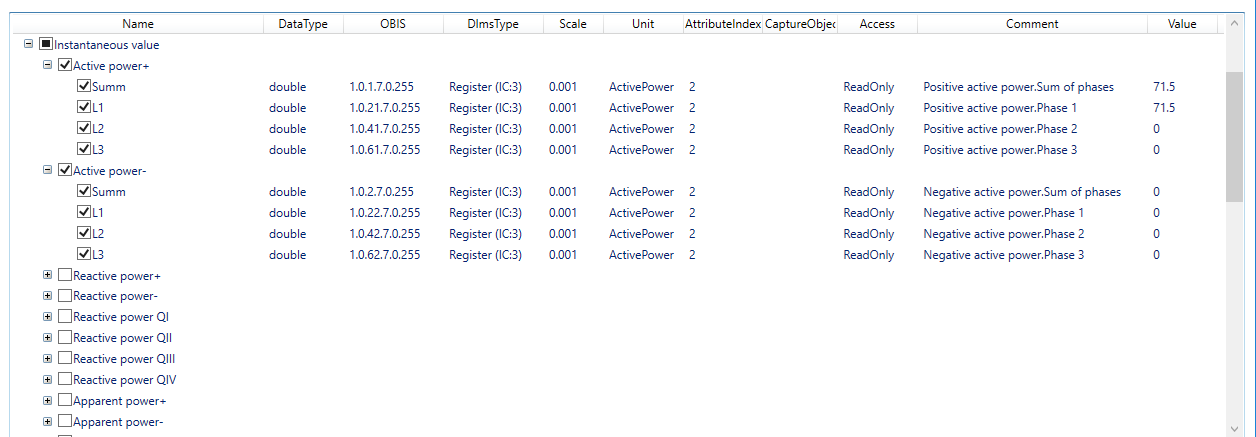

All the variables of the imported file are displayed in the tree lines, each imported tag attribute is displayed in the table columns.
•Name - variable name. If the box to the left of the name is checked, that means that this name is selected (will be imported, polled or saved).
•DataType - data type of the variable that will be set on ОРС server.
•OBIS - identifier (logical name) of DLMS variable.
•DlmsType - type of DLMS object.
•Scale - multiplier (factor). The value obtained from the device is multiplied by this factor.
•Unit - measured parameter (frequency, active power, current).
•AttributeIndex - object index that will poll this tag.
•Access - type of access.
•Comment - tag comment.
•Value - tag value read from the device.
