Operations in Dialogs of Parameters

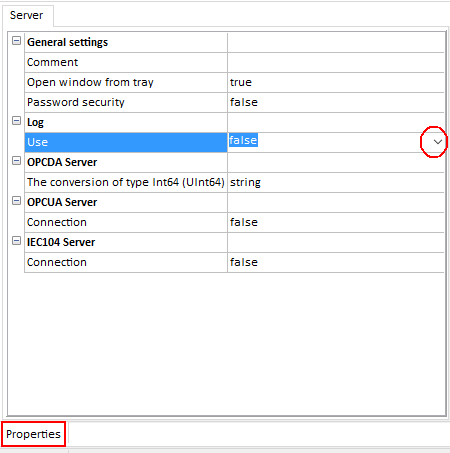

Dialogs of parameters (object editors) are tables; the left column displays a parameter name, and the right column displays a value. The most of value cells is provided with a selection tool:

multi_img75

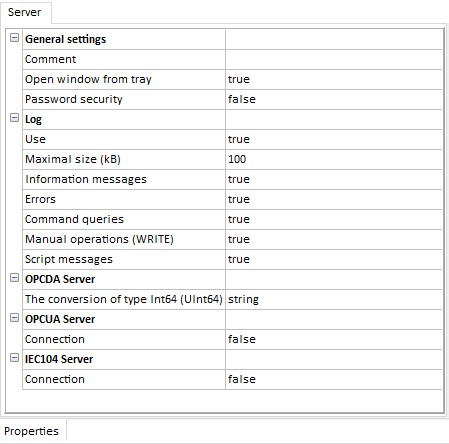

A set of parameters is dynamically changed, depending on a configuration (only actual parameters are displayed; compare the next picture, where writing to a server log is enabled, with the previous one):

multi_img76

For some parameters, value cells contain buttons to open the respective additional editors.

A value cell without a selection tool, in which a value is typed manually, is a text editor. In that editor, standard commands are supported. For example, the key combination CTRL+SHIFT+ multi_img77 selects a text from the current cursor position to the end. In addition, commands of the standard context menu are available.

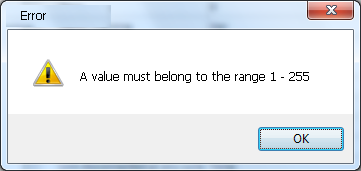

If an incorrect value is set, the dialog that displays an admissible range of values is displayed:

multi_img78

The commands Undo and Redo of the ‘Edit’ menu are actual for dialogs of parameters.
